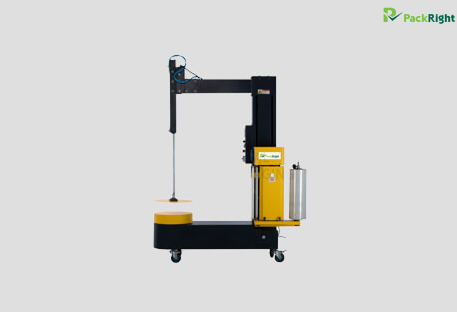

Carton Stretch Wrapping Machine - PR FG 800B
The PR FG 800B is one of its kind carton stretch wrapping machine that is easy to operate. It is mostly used to pack small and medium-sized objects in a carton and has a cylinder pressure to pack them.
The rotating platform can pack cartons/objects up to 80kgs and is capable of speeds up to 20rotations/min.
Technical Specification
Power | 1P AC220V /110V ,50/60Hz,0.5KW |
Speed of turntable | 0-20r/min |
Table height | 650mm |
Dia. of turntable | I¦400 mm |
Machine size | L 1150 * W 400 * H 1400 mm |
Wrapping height | 400 ~500 mm; 500 ~ 850 mm |
Capacity | 80kg |
Film | 500 mm, out diameter I¦280 mm |
Make | PackRight |
Features
- It adopts cylinder presser to pack small and medium-sized objects packed in carton box or directly palletized onto the rotating platform (Pneumatic)
- 250% stretch-ability
- Higher yield of stretch film
- Quality, clean and uniform Finishing on each and every pallet.
- Time and labour cost saved
- Easy Operation
- Maintenance Free machine (mechanical side) i.e Minimum maintenance
Download PDF
click here to download the broucher
Demo Available
No
